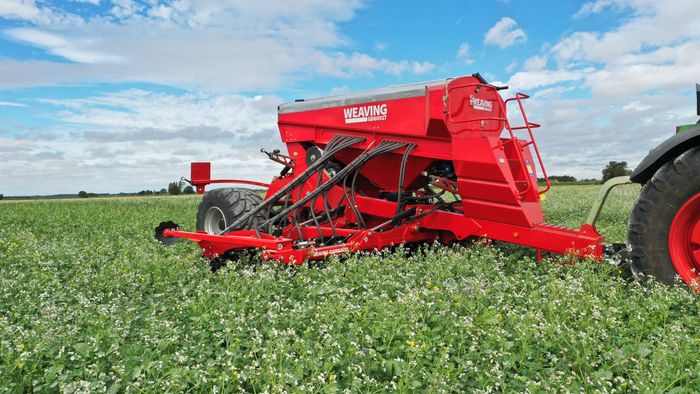

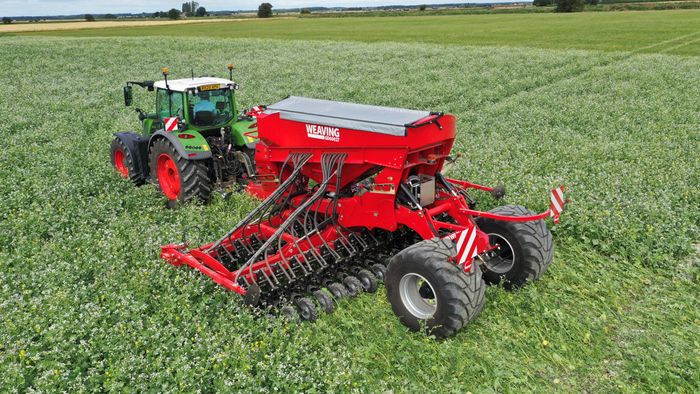

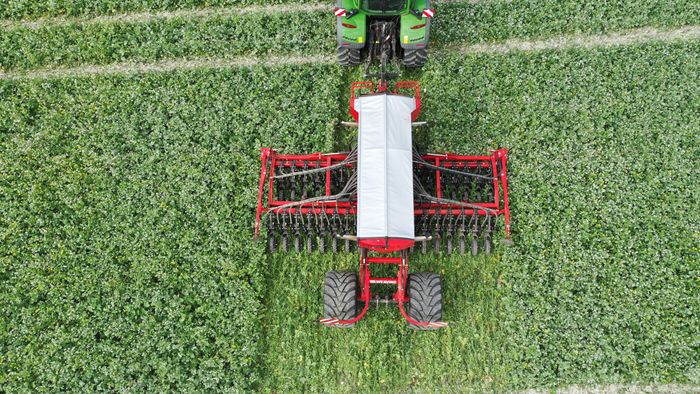

Weaving GD Disc Drill

Weaving Machinery Hall: 20 Stand information: Hall 20 Stand 20.770
  • Weaving GD Disc Drill
  • Weaving GD Disc Drill
  • Weaving GD Disc Drill
Weaving GD Disc Drill Weaving GD Disc Drill Weaving GD Disc Drill

Trailed models are available in 3 to 8 Metre working widths helping to satisfy the demands of large farmers and contractors. The 5,000 Litre hopper (*4,000L for the GD3001T) offers users ample volume whilst being fitted with an easily accessible volumetric metering unit accompanied by RDS iSOCAN controls. The tank can be configured to include two integral micro granular hoppers. A closed hydraulic suspension system provides individual coulter pressure of up to 300Kg helping to maintain consistent sowing depth across undulations. Fitted with a Cat III linkage mounted drawbar allowing for tight headland manoeuvres. The hydraulic folding coulter bar maintains transport widths of under 3 Metres on all models. A guide of 35HP per metre is recommended.

RDS iSOCAN controls with GPS forward speed monitoring, hydraulic fan & oil cooler. 2 rows of coulters with a row spacing of 166mm, tank work and road lights, tank sieve, roll over hopper cover, Mitas flotation tyres. ISOBUS Ready.
