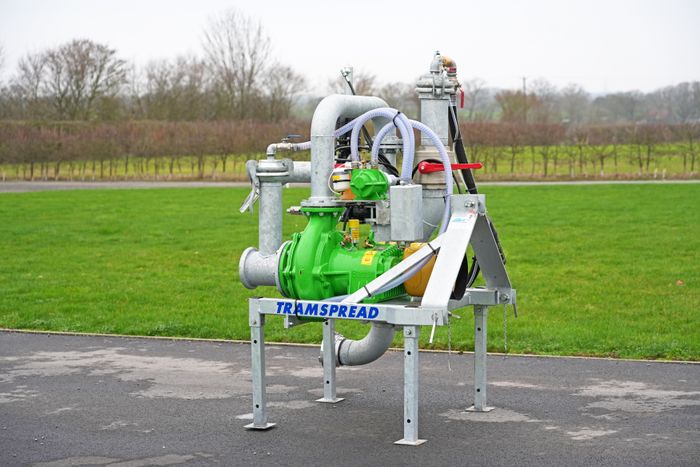

TRAMSPREAD Bauer Magnum PTO-driven slurry chopper pump
)
Tramspread’s high-spec PTO-driven pumps are mounted on a heavy-duty galvanised three-point linkage frame with a heavy-duty PTO shaft. Three different pumps are offered.
The Bauer Magnum SX1000 here is suited to larger farmers and contractors who require a high-performance pump to supply umbilical systems. It has a minimum power requirement of 150hp and is supplied complete with hydraulic primer or optional auto primer, 6” inlet and 4” outlet with gate valve and compressor coupling.
• Easily handles up to 12% solids
• Capacity of up to 300 m3/hour
• Manometric head of up to 140m
• High cutting performance
• Engineered for long life
• Efficient and economical
• Low operating costs
• Easy maintenance
• Self-primer (optional equipment)
Magnum slurry pumps are designed with a special chopper on the suction side. This chopper guarantees trouble-free operation even if the slurry contains solids like straw, fibrous material and clots or sludge up to not more than 12%.
Option of three pipework arrangements: Tramspread delivery pipework, return to store (also capable of launching a 4-5” sponge), or return to store plus sponge ball launcher (suitable for 5-6” ball)..
