NEW: TRAMSPREAD SUFFOLK 24M VERTICAL FOLDING DRIBBLE BAR

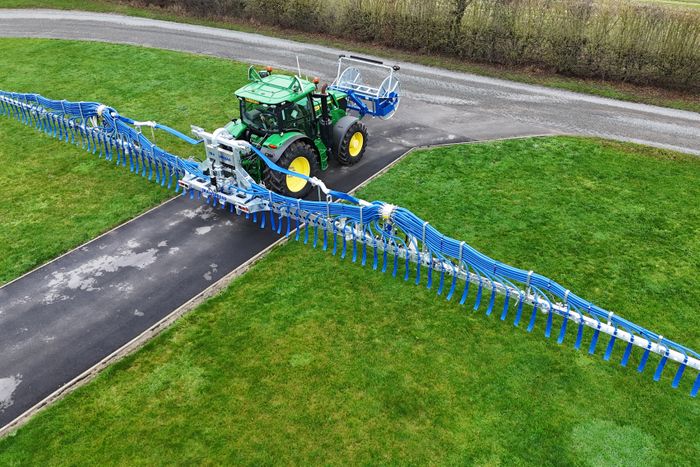

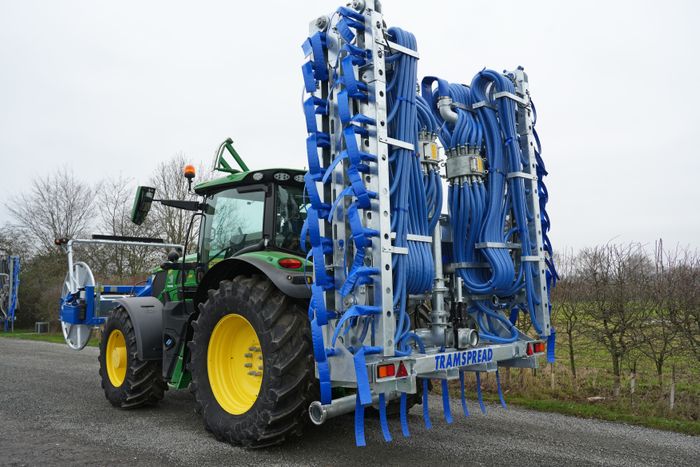

Tramspread’s Suffolk dribble bars are available in sizes from 6m to 24m. The NEW 24m vertical folding Suffolk dribble bar has been thoroughly field-tested for 18 months during which time it has successfully covered many hundred of hectares. The completely new boom folds vertically making it suitable for use with any make and model of appropriately sized tractor. It is close-coupled, meaning it’s well-matched to tractors of around 150hp plus, just like the horizontal folding version.

There has been no compromise in design with heavy-duty and high-quality construction prioritised, making guy ropes unnecessary. The important ability to fold down to 18m, with shut-off taps, has been retained from the existing 18/24m dribble bar. Other premium features include breakback end sections, electrohydraulic controls using power beyond and left/right variable boom geometry.

Typical specification of the NEW 24m Suffolk includes:

• Folds down to 18m working width
• 2 x Vogelsang ECQ or Arena distributors/ macerators
• Dribble outlets 300mm apart
• Left and right geometric control
• Full electro-hydraulic control via in-cab control box
• Galvanised, heavy-duty construction
• Breakback end sections

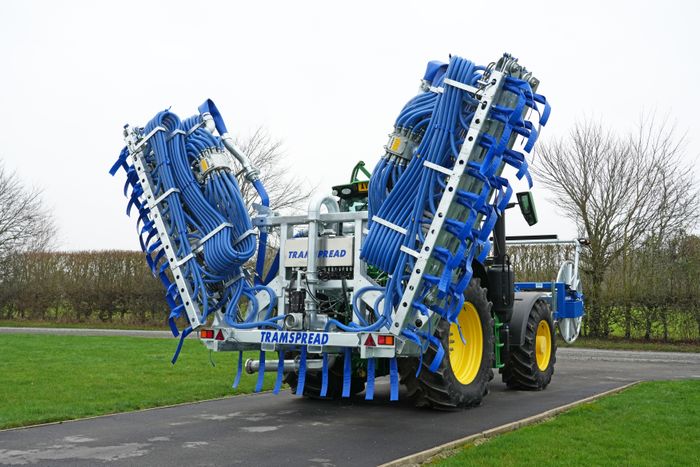

• Hydraulic vertical folding allows access to tractor pick-up hitch
• Auto transport safety latches with securing pins
• Designed to accept flowmeter and manure sensor
• Front mounted 5” swinging arm permits U-turn
• Easily tanker-mounted via linkage
• Purge outlet with spread nozzle (optional)
• Valves to decrease spread width (optional)
