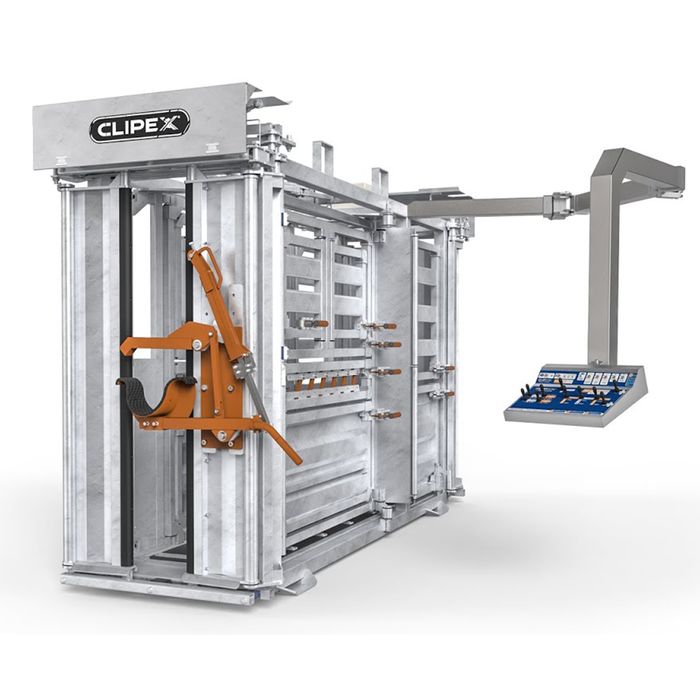

Clipex HD2000 Series Crush

The Clipex HD 2000 Series Pneumatic Crush represents next-level cattle handling with its blend of smart automation, animal welfare, and operator convenience:

• Robust & Corrosion-Resistant Construction
  Built with 450 MPa grade steel and fully hot-dip galvanised, this crush offers exceptional strength and durability in harsh farm environments.

• Pneumatic Double Parallel Squeeze & Silent Operation
  Pneumatically controlled with mechanical infinite locks, it delivers smooth, secure restraint while minimizing stress. Silent mechanisms, including nylon bushes and anti-rattle slam catches, ensure calm handling.

• Comprehensive Access & Handling Features
  Features include a heavy-duty head scoop, full veterinary section, three side access doors, auto-locking rear sliding gate, adjustable entry gate (split), rump bar, and multiple serviceable doors for ease of operation.

• Automation & Drafting Enhancements
  Optional upgrades include automated weighing, auto-drafting (4–6 way), and side draft capabilities, powered by an advanced control panel or wireless remote, streamlining operations and reducing labour.

• Specifications at a Glance

  • Internal length: 3450 mm

  • Internal width: 750 mm

  • Minimum squeeze width: 350 mm

  • Total height: 2290 mm

  • Construction weight: 1860 kg

  • Rubber-coated mesh flooring and lifting eyes included for safety and mobility.

• Built for Operator Safety & Efficiency
  The pneumatic system uses low air pressure for automation, with mechanical locks doing the heavy lifting, minimising risk of injury while ensuring secure holding. Ideal for large-scale operations or solo operators.
