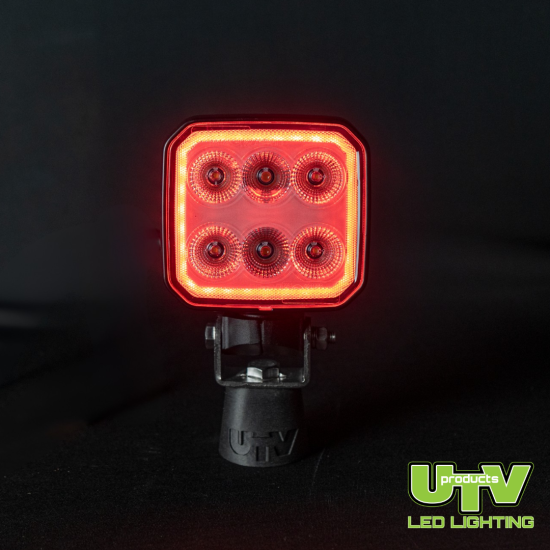

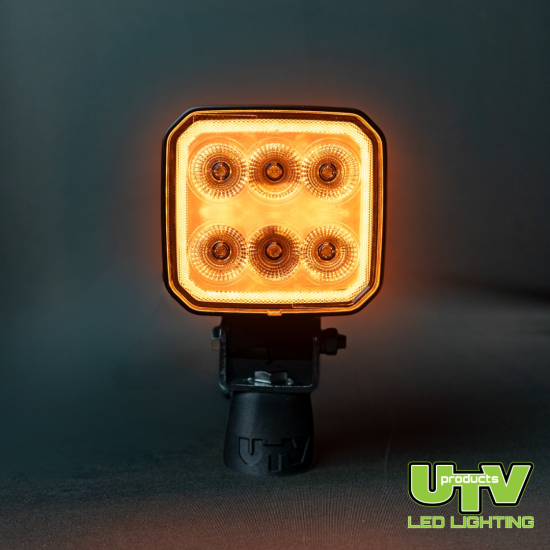

UTV3022-2 - 90W 7200 Lumen Square Work Light – Built in RED/Amber DRL with Strobe
)
)
)
)
NEW! Introducing one of our newest LED square work lights – UTV3022. This LED is the result of a long journey of research and development designing and creating our newest range of square LED work lights. Our in-house engineers started with CAD designs to work out how the PCB would fit inside the mould and conducted thorough testing, including thermal analysis. This new light boasts 90W, 7200 lumens achieve an impressive 1 lux at 125m while maintaining the flood beam pattern ensuring both wide-angle coverage and distance. The swivel function allows full, easy adjustment – direct the light where you need it, simulating daytime light for those night-time jobs. Designed with your machine in mind, this work light is tailored to preserve its OEM appearance. Another standout feature of our product line is the absence of radio interference. A technology we pioneered and still lead in this area. Say goodbye to annoying crackles on your radio, CB radio and even your GPS. With our lights, you can enjoy uninterrupted performance well into the night.
Other versions of this light are available in a 120W (UTV3023) and 60W (UTV3021) – same, but different power output.
Please note: these lights are high output and hence draw considerable current. Care must be taken to not overload original wiring when fitting to your machine.
Connectors:
UTV725
UTV727
UTV732
UTV734
Specifications:
-90W – 6x 15W LED
-7200 Actual Lumens
-Built in DT Connector
-Swivel Mount Bracket
-Voltage: 9-32V DC
-Operation Temperature: -40° to 85°C
-Colour Temperature – 5700-6000k
-Waterproof & Dustproof: IP68
-Durable UV Polyester Powder Coating
-Die-cast Aluminium Housing
-Durable Polycarbonate Lens
-Overvoltage Protection
-ECE-R10 Approved
-EMC CISPR 25 Class 4
)
