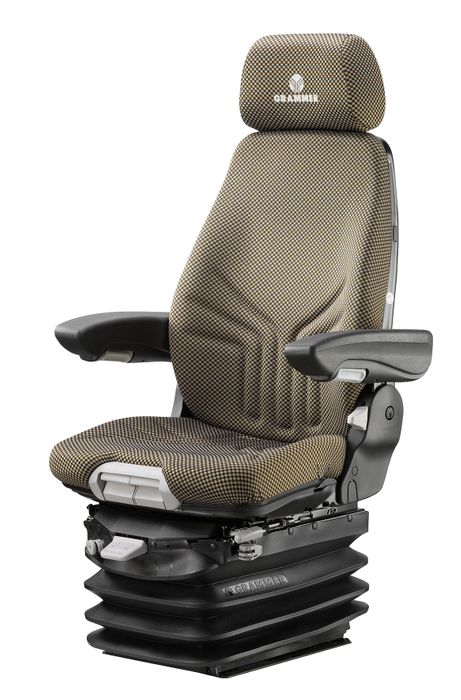

Grammer Actimo XL
)
)
)
)
)
)
Grammer Actimo XL
The high-comfort seat for large construction machinery. The pneumatical suspension with APS (Automatic Positioning System) ensures that contact with the pedals remains unaffected. The integrated fore & aft isolator reduces horizontal vibrations in the driving direction. The passive climate system (active carbon layer) improve the seat climate. Experience and use operating comfort with optimum ergonomical user guidance.
Specifications:
- Air suspension (12V compressor)
- APS (Automatic Positioning System)
- Adjustable shock absorber
- 100mm vertical suspension stroke
- Automatic weight adjustment 50-130kg
- Pneumatic height adjustment - 80mm
- Fore & aft adjustment - 210mm
- Fore & aft isolator
- Forward-mounted controls
- Passive climate system
- Pneumatic lumbar support
- Adjustable backrest angle
- Adjustable seat cushion depth and angle
- 490mm seat cushion width
Accessories:
- Control pod adapters
- 180° or 360° turntable
- Height-adjustable armrests
- Retractable seatbelt
- Seat heating
- Operator presence switch
- Headrest
- Document box
