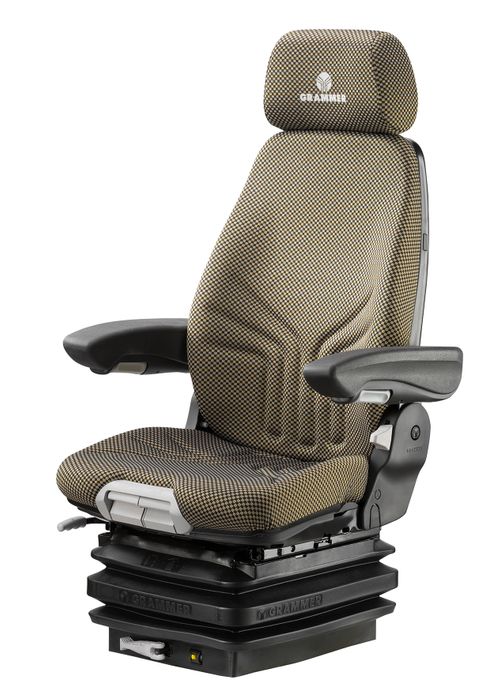

Grammer Actimo M

Grammer Actimo M

The mechanically suspended comfort seat for large construction machinery.

Specifications:

• Mechanical suspension
• Non-adjustable shock absorber
• 100mm vertical suspension stroke
• Mechanical weight adjustment 50-130kg
• Mechanical height adjustment - 60mm
• Fore & aft adjustment - 210mm
• Forward-mounted controls
• Mechanical lumbar support
• Adjustable backrest angle
• Adjustable seat cushion depth and angle
• 490mm seat cushion width
• Available in fabric or PVC

Accessories:

• Control pod adapters
• 180° or 360° turntable
• Height-adjustable armrests
• Retractable seatbelt
• Seat heating
• Operator presence switch
• Headrest
• Document box
