Customised Hydraulic Manifolds and Powerpacks
)
)
)
)
Related Fluid Power specialises in bespoke hydraulic
manifolds and power packs designed around the demands of individual
applications. From agricultural machinery to industrial equipment, our custom
solutions combine performance, reliability and efficient design to meet the
requirements of OEMs across a wide range of sectors.

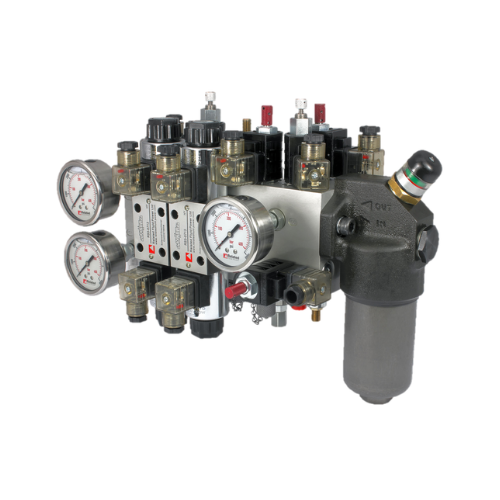

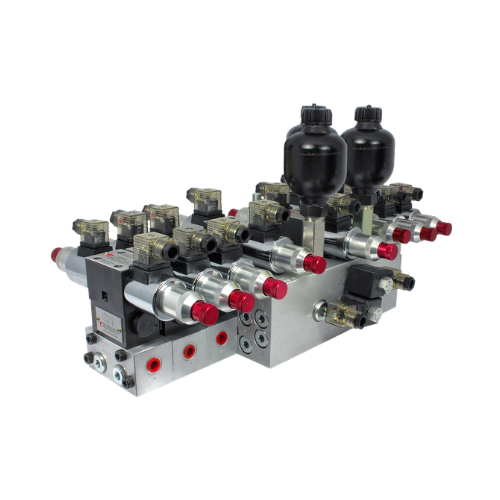

Integrating valves, flow paths, and mounting features into a
single compact control block, engineered specifically for your system. Our
manifolds are manufactured from high‑grade aluminium or steel, with a choice of
protective coatings to ensure durability and corrosion resistance in harsh
operating environments.
Our manifolds offer:
- Fewer
connections → fewer leaks
- Optimised
flow paths → higher efficiency
- Compact
layouts → smaller, lighter systems
- Integrated
mounting → faster installation
- Validated
designs → higher reliability
- Easier
maintenance → lower costs
Flexible Control Options:
- Large
range of cartridge and sub‑plate–mounted valves
- Manual
and mechanical control
- Pilot‑operated
and electro‑hydraulic configurations
- Proportional
control options for precise machine performance
- Directional,
pressure, flow, and load‑holding functions
Performance Capabilities:
- Flow
rates: up to 600 lpm
- Working
pressures: up to 420 bar
- Wide
range of voltage and connector options, including environmental‑ sealed
coils
- Multiple
port sizes and types to match your system requirements

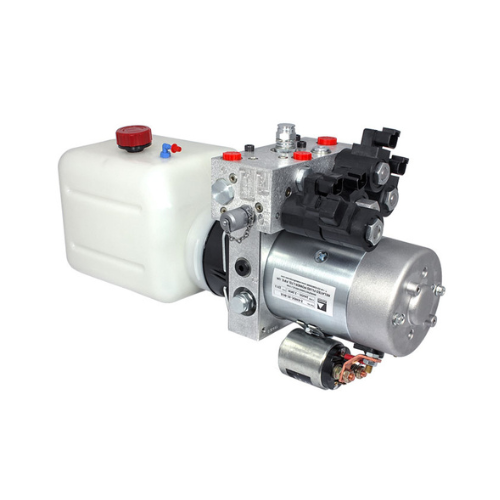

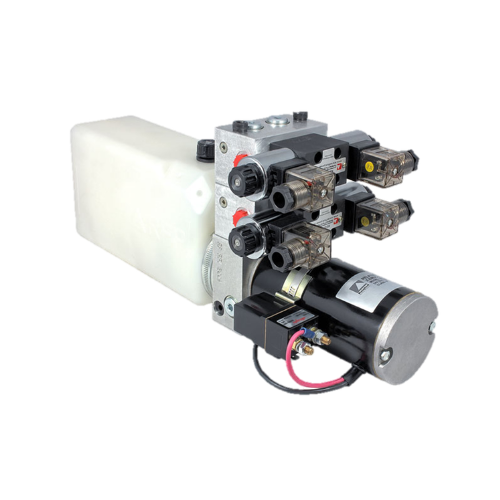

Bespoke Hydraulic Mini Power Packs
Engineered around your exact operating conditions, space
constraints, and performance targets – helping OEMs and industrial users reduce
downtime, improve efficiency, and accelerate time to market. From simple
motor pump units to multi-functional power unit assemblies, we can provide
custom solutions that fully meet our customers’ expectations of performance,
quality and cost.
Our custom mini power packs deliver:
- Optimised
thermal performance → extended component life
- Reduced
energy consumption → lower running costs
- Lower
noise & vibration → safer, more comfortable environment
- Compact
footprint → easier, faster installation
- Improved
service access → reduced downtime during service
Typical power pack options:
- DC
motors: 12vdc, 24vdc, 48vdc, 80vdc (150W – 5.5kW).
- AC
motors: 1ph – 110vac, 220/240vac 3ph – 380/415vac (0.25kW – 4kW).
- Pumps:
0.19cc – 9.8cc (up to 320 bar).
- Reservoirs:
0.1 litres – 50 litres (and above). Including totally sealed systems.
Typical control options:
- Lift
– check – solenoid lower.
- P
& T ported / Flange interface.
- Various
flange on controls for single and double acting applications.
- Custom
cartridge valve systems (integral, flanged and in-line).
- Types
of operation: Solenoid, manual, mechanical, sequence, proportional.
- Manual
override and emergency hand pump options.
- Solenoid
coil voltages: Various DC and AC voltages.
- Sol.
coil terminations: EN 175301-803, Flying Leads, Dual spade.
- Environmental
proofed sol. coils: Deutsch, AMP Superseal, AMP Jr. Timer, Metripak.
- Pendant
controls
Discuss Your Hydraulic Requirements with Our Team
Come and meet us on stand 18.320 in Hall 18 to discuss how
we can support your agricultural machinery and other application requirements.
)
