Combi Pump Set

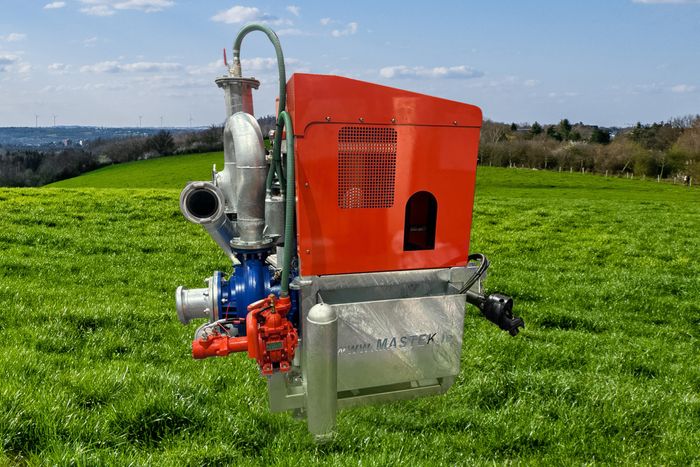

Mastek Combi Pump Set

Self contained unit with compressor and pump together with small foot print.

Concept

• No need for front linkage or front PTO Hydraulic Clutch for changing from Pump to Compressor or vice versa
• Low maintenance with external grease points
• Suction Hose transporter
• 6" Knife Valve
• Heigh vacuum hydraulic primer

Compessor Technical Data:

• 280 CFM/8000 L/min
• Operates at up to 10 bar (g) or 141 psi (g)
• Non-return valve
• Front or rear PTO compatible

Chior Pump Technical data:

• Can handle up to 12% solids Operating speed up to 2600 rpm Mechanical seal system lubricated by oil
• The pump wet end and gearbox are totally separate, therefore any mechanical seal failure is instantly visible with no opportunity for gearbox contamination.
• Fixed knives, helicoid and impeller blades manufactured from treated and hardened material
• Operators should consider there is no dry running capacity
